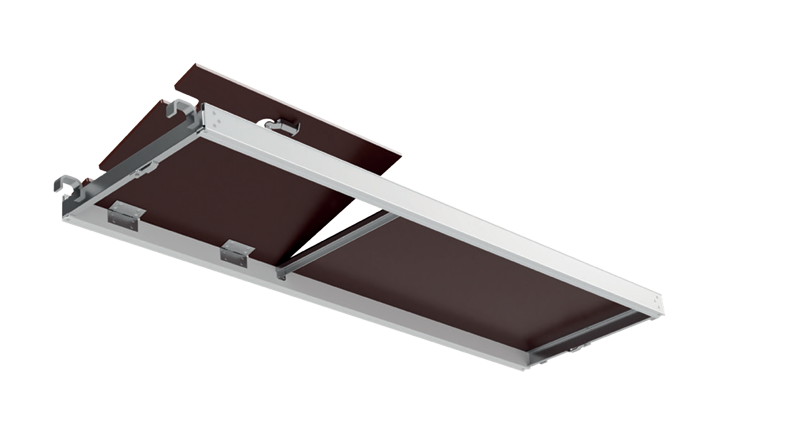

Plancher à trappe
Planchers à trappe conçus pour sécuriser l’accès entre niveaux d’échafaudage. Plusieurs configurations existent selon le plateau (alu/bois ou alu/alu) et la présence d’une échelle intégrée.
À retenir
- Trappe articulée et protégée contre un soulèvement intempestif
- Version avec échelle : échelons pouvant être repliés
- Plateau alu/bois ou alu/alu selon configuration
- Différentes longueurs disponibles (voir références ci-dessous)
Tailles & références
Tableaux reconstitués proprement à partir de ton visuel.

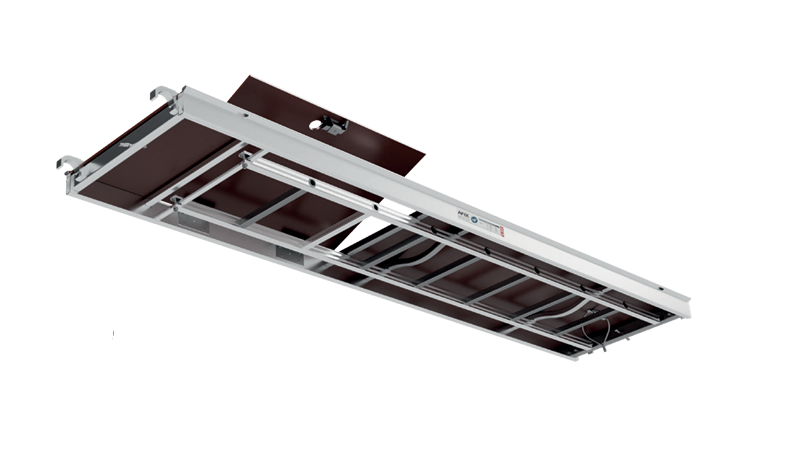

Plancher à trappe ALU/BOIS
| Longueur | Largeur | Poids | N° réf. |
|---|---|---|---|
| 1,50 m | 0,60 m | 15,3 kg | MS0033/150 |
| 2,00 m | 0,60 m | 18,5 kg | MS0033/200 |
Plancher à trappe ALU/BOIS
| Longueur | Largeur | Poids | N° réf. |
|---|---|---|---|
| 1,50 m | 0,60 m | - | ST0034/150 |
| 2,00 m | 0,60 m | - | ST0034/250 |
| 2,50 m | 0,60 m | - | ST0034/250 |
| 2,50 m | 0,60 m | 25.0 kg | MS0034/250 "NF" |
| 3.00 m | 0,60 m | - | ST0034/300 |
| 3.00 m | 0,60 m | 31.0 kg | MS0034/300 "NF" |

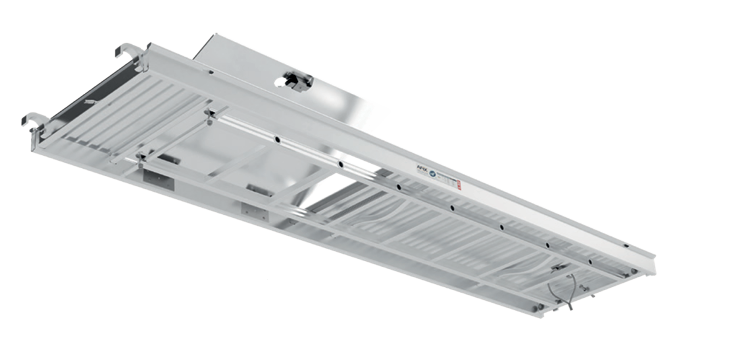

Plancher à trappe ALU/ALU + ÉCHELLE
Plancher à trappe avec surface de marche fine en tôle d’aluminium.
| Longueur | Largeur | Poids | N° réf. |
|---|---|---|---|
| 2,50 m | 0,60 m | 31,5 kg | MS0034/550 |
| 3,00 m | 0,60 m | 34,5 kg | MS0034/560 |

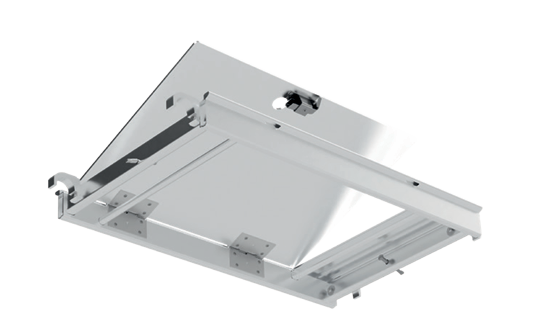

Plancher à trappe 1 m
| Longueur | Largeur | Poids | N° réf. |
|---|---|---|---|
| 1,00 m | 0,60 m | 18,5 kg | AS0033/510 |
* sur commande (indiqué sur ta fiche).

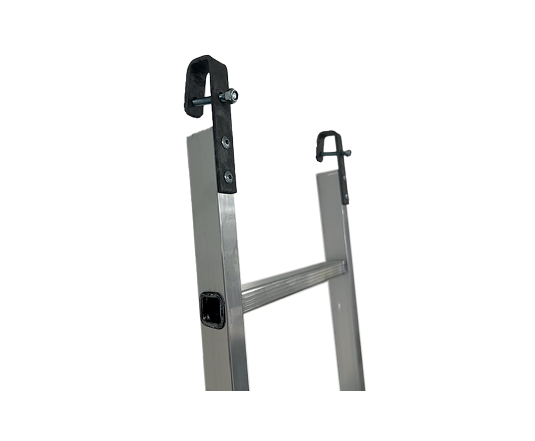

Échelle aluminium
| Longueur | Largeur | Poids | Crochets | N° réf. |
|---|---|---|---|---|
| 2,10 m | 0,60 m | 4,0 kg | démontable | DF0033/001 |
